Lenses, Isco, Schneider, CAVX, ZEIT:

The CineSlide is available standalone, or as a complete system with a variety of high end ground glass lenses by Isco, Schneider, Zeit, and CAVX.

Due to the size of the Isco IIIL and the Schneider XL lenses, these 2 lenses are virtually "future proof". All of our lens offerings provide an anamorphic horizontal stretch without affecting image height, or focus of the 16:9 image when removed from the light path. Both provide astigmatism (focus) adjustment, something that is unavailable with prism based lenses. All of our ground glass lenses provide the ultimate "scope" experience.

All anamorphic lenses are 100% compatible with the CineSlide. Contact us for custom mounts for your lens.

Remote Control

The CineSlide includes a basic IR remote control. See downloads section for Pronto and URC, programming files as well as HEX codes for use in other remote systems.

Mounts (Click on images below for full size images):

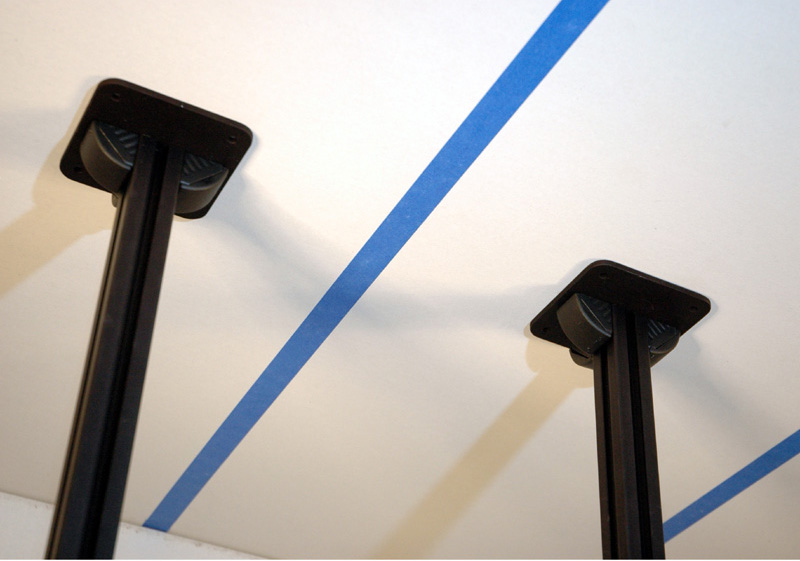

NOTE: "Blue" lines in photos represent possible/typical joist locations (16" O.C.). CineSlide in photos is a frame only, motor not shown.

Photos below are for illustration and planning purposes only. A qualified installer must determine the proper location for all mount points to ceiling structural members. The hardware (screws, bolts, nuts) for attachment to a ceiling or structural member is not shown and not included. See installation kit instructions for minimum hardware recommendations, or consult licensed engineer, or architect.

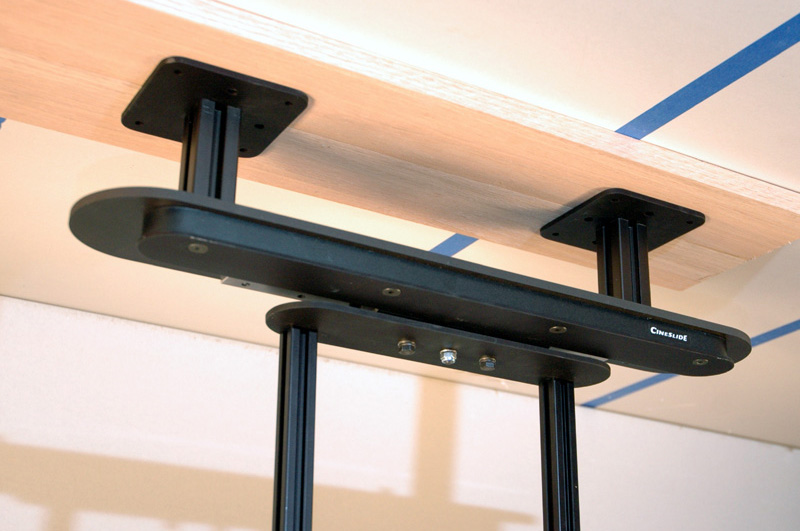

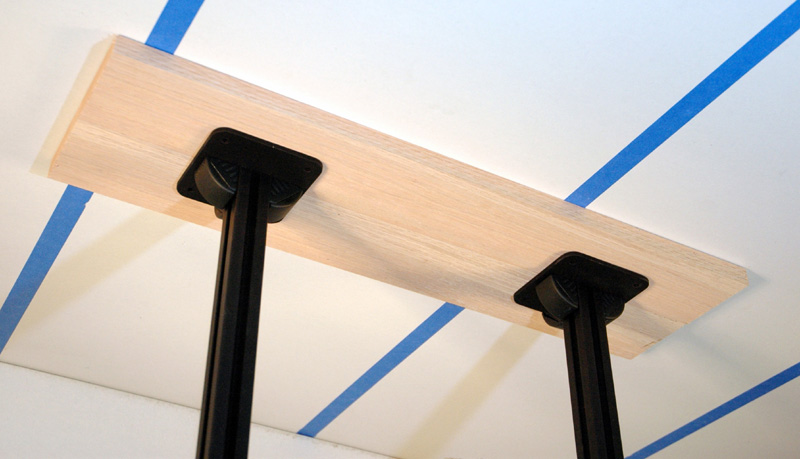

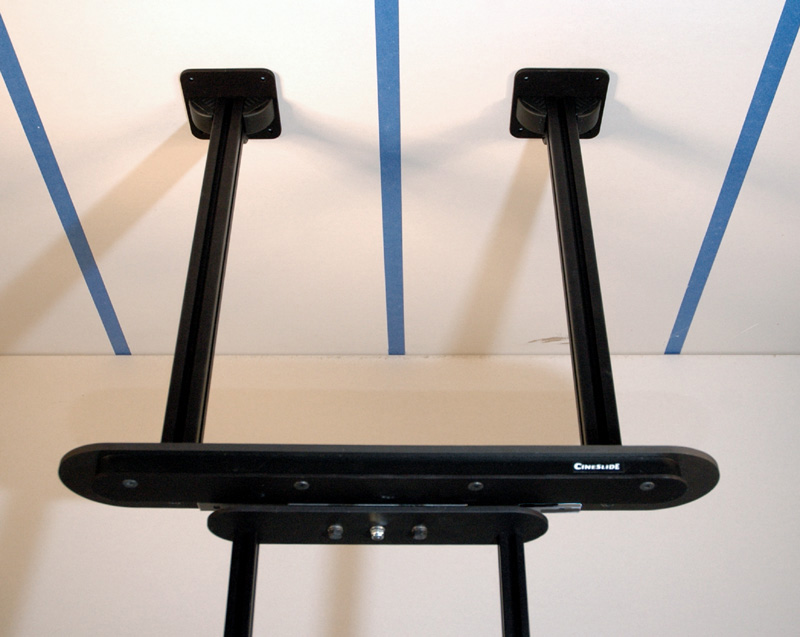

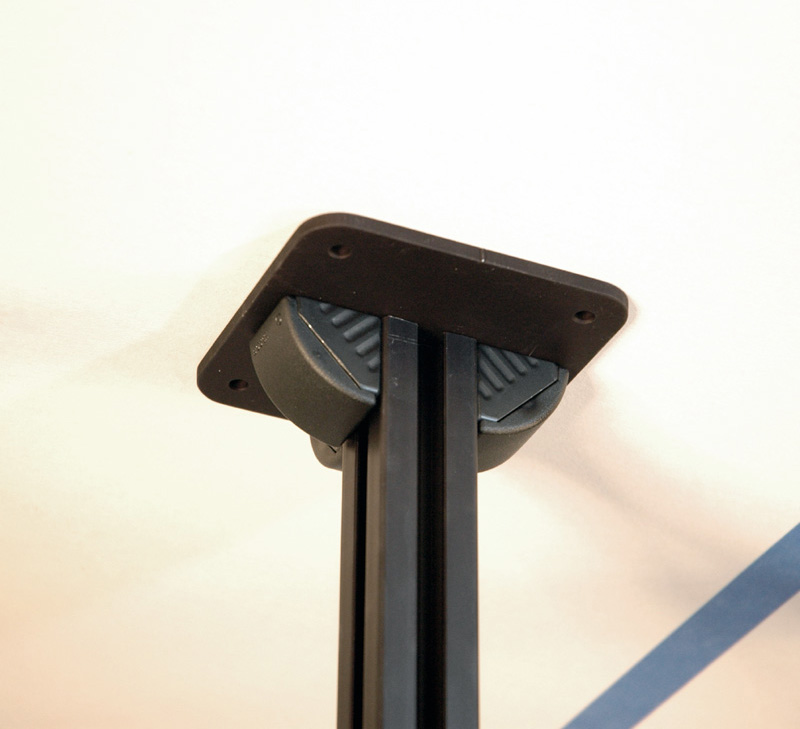

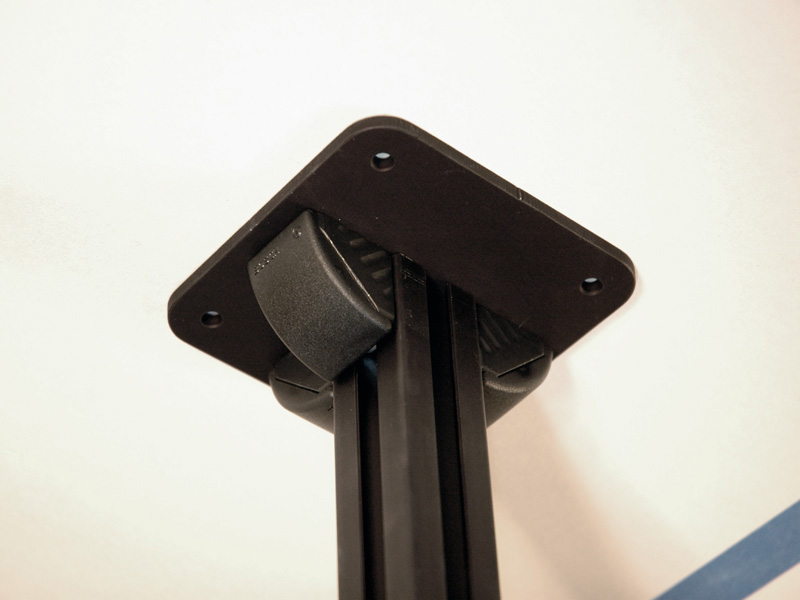

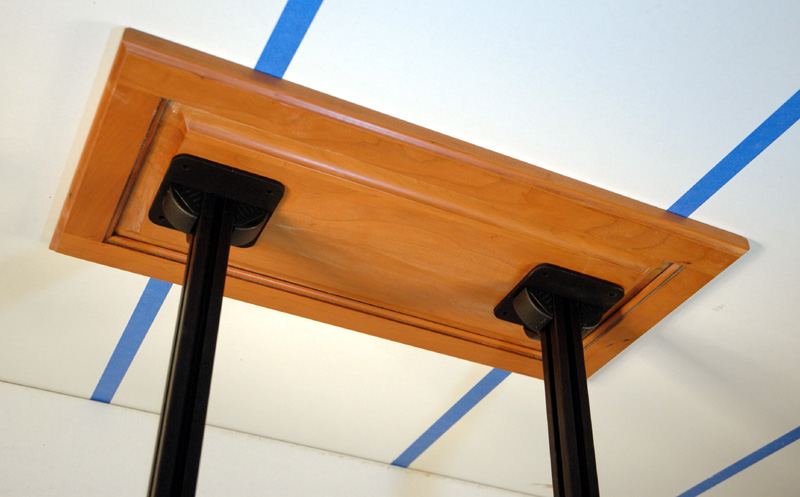

PP kit - MOST POPULAR, Recommended. Post to ceiling plates mount kit - non-adjustable, in forward/rearward (F/R) direction. Left/Right adjustment is avail at device to post interface. Posts attach to plates, plates must attach to a structural plate such as 3/4" plywood. Specify post height, Min=2" (Pictured in low profile photos), Max 19" (pictured). Requires structural plate or member to attach mount "feet" (e.g plywood, or decorative structural ceiling panel, backing panel, etc.). Structural plate must be attached to ceiling structural members. DO NOT ATTACH DIRECTLY TO DRYWALL/WALLBOARD. This kit is available in Short, Medium, and Long mount post lengths (see pricing link).

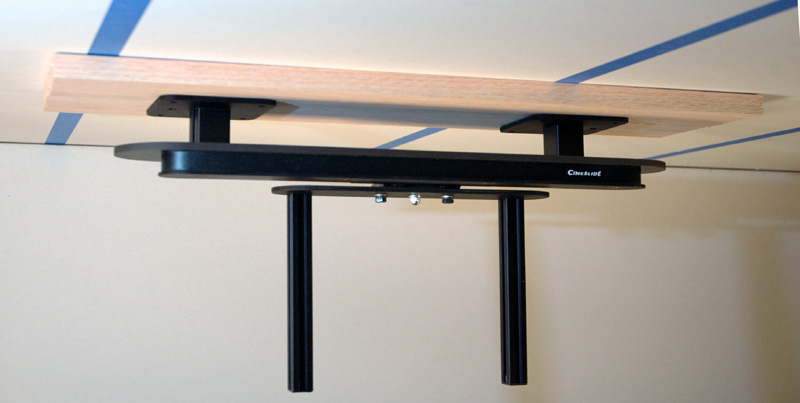

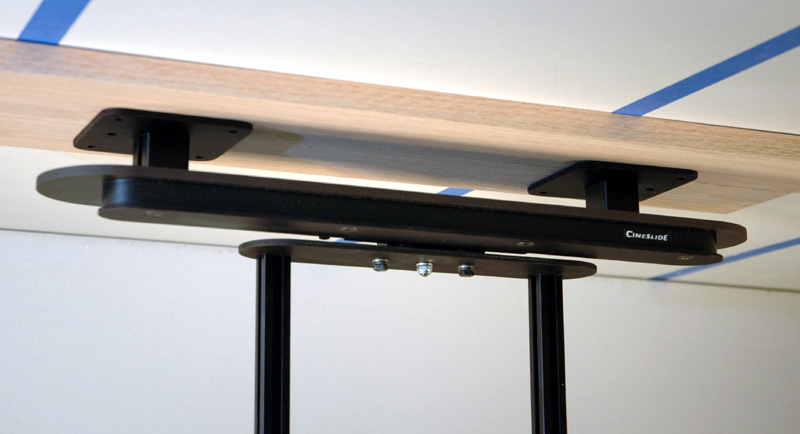

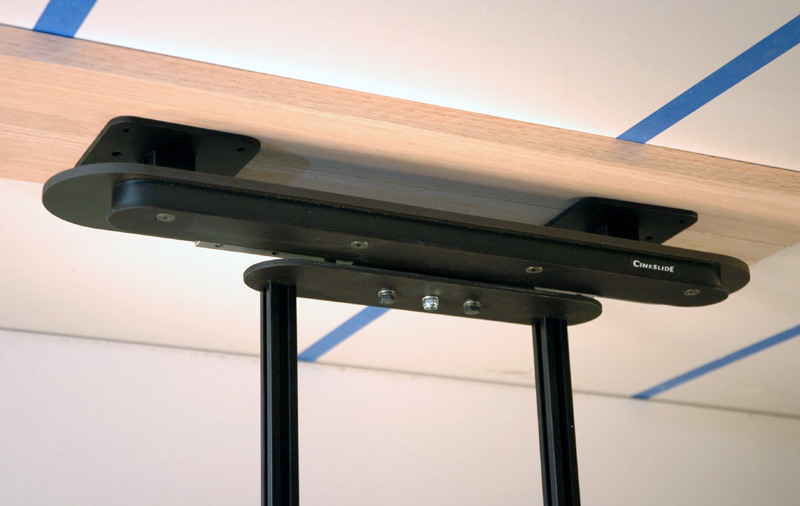

Low profile post length:

Besides the typical ceiling mount, there are hundreds of ways and mount situations for the CineSlide. Other custom mounts available: Contact us for assistance with your specail mount needs. Some custom mount types are:

TB-D - Tabletop demo stand
SH1 Kit - Shelf mount. Bars mount to rigid mounted shelf and to bottom of CineSide.
PW Kit - Port Wall. Mount Cineslide to the face of a Port wall. Requires minimum 3/4" x 4" solid wood face plate. No ceiling connection required. Relatively simple installation

 Custom Mounts, custom lengths, design services available upon request
